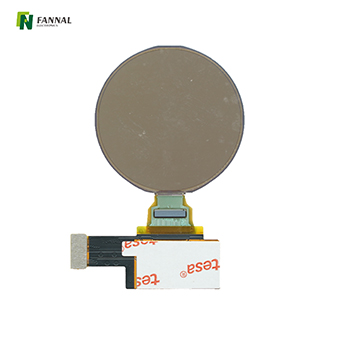

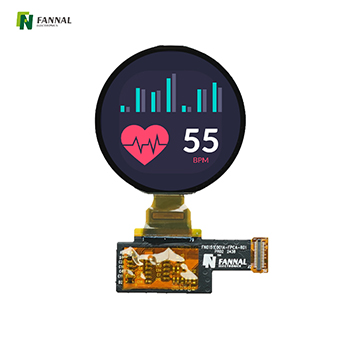

1.504 英寸 466x466 OLED 屏幕 MIPI/SPI 圆形 AMOLED 显示屏

特点介绍:

主要参数:

接口及电气特性:

接口:

Pin No.	Symbol	I/O	Description
1	MTP_PWR	P	OTP Panel.
2	GND	P	Ground.
3	D0P	I	MIPI DSI Positive differential data signal.
4	D0N	I	MIPI DSI Negative differential data signal.
5	GND	P	Ground.
6	CLKP	I	MIPI DSI Positive differential data signal.
7	CLKN	I	MIPI DSI Negative differential data signal.
8	GND	P	Ground.
9	D1P	I	MIPI DSI Positive differential data signal.
10	D1N	I	MIPI DSI Negative differential data signal.
11	GND	P	Ground.
12	IM0	I/O	Interface type selection.
13	IM1	I/O	Interface type selection.
14	GND	P	Ground.
15	NC	-	No connection.
16	GND	P	Ground.
17	D1	I	Serial input signal in SPl l/F. The data is input on the rising edge of the SCL signal. lf not used, please connect to VSSlO.
18	D0	I	Serial input signal in SPl l/F. The data is input on the rising edge of the SCL signal. lf not used, please connect to VSSlO.
19	GND	P	Ground.
20	CSB	I	Chip select input pin in SPI I/F. If not used, please connect to VDDIO.
21	SCL	I	Pixel clock input signal.
22	SDI	I	Serial data input signal.
23	SDO	I	Serial data output signal.
24	RESET	I	Reset signal input.
25	TE	O	Tearing effect output pin to synchronize MCU to frame writing, activated by S/W command. When this pin is not activated, this pin is output low.
26	OLED_EN	O	Power IC enable control pin(Note:"H"=VDD level, "L"=VSSI level.
27	SWIRE	O	Swire protocol setting pin of Power IC.
28	NC	-	No connection.
29	VCI	P	Supply analog voltage.
30	VDDIO	P	Power supply for display driver IC interface and logic system.
31	GND	P	Ground.
32	ELVDD	P	Positive Power supply for Panel.
33	GND	P	Ground.
34	ELVSS_IN	P	Negative Power supply for Panel.

电气特性:
