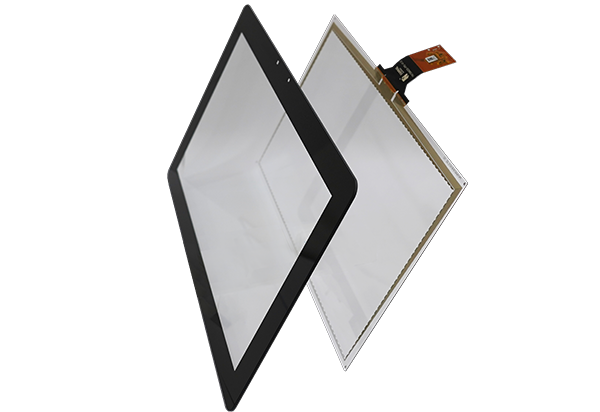

电容触摸屏
- 结构：GG,GFF
- 尺寸：1.8寸～55寸
- 自制玻璃sensor
- 支持带水，盐水，汗水触摸
- 支持Linux，W indoors， IOS和 Android系统
- 定制盖板：A G/AR/AF/AB
- 不同IK等级需求
- 真实多点触摸
- 支持防手掌误触，支持手指，厚手套，被动笔触摸
- 产品可满足车载应用ACE-Q100/IATF6949
| 尺寸 |
型号 |
产品类型 |
可视区 |
外观尺寸 |
操作温度 |
储存温度 |
接口 |
参数一 |
参数二 |
参数三 |
| 3.5 |
FN035MGRGAM |
G+G |
50.52*75.48 |
60.90*89.18 |
-20-70 |
-30-80 |
IIC |
Microchip |
|
|
| 4.0 |
FN040EGRGXX |
G+G |
52.84*87.40 |
60.22*97.60 |
-20-70 |
-30-80 |
IIC |
EETI |
|
|
| 4.3 |
FN043IGRGXX |
G+G |
96.24*54.66 |
104.80*66.50 |
-20-70 |
-30-80 |
IIC |
ILITEK |
|
|
| 5.0 |
FN050IGRGXX |
G+G |
109.00*65.80 |
147.00*104.00 |
-20-70 |
-30-80 |
IIC + USB |
ILITEK |
|
|
| 5.7 |
FN057IGRGXX |
G+G |
116.40*87.76 |
125.70*101.25 |
-20-70 |
-30-80 |
IIC |
ILITEK |
|
|
| 6.8 |
FN068MGRGXX |
G+G |
161.59*61.22 |
190.66*75.01 |
-20-70 |
-30-80 |
IIC |
Microchip |
|
|
| 7 |
FN070MGRGXX079A |
G+G |
152.4*92.44 |
199.5*135.5 |
-20-70 |
-30-80 |
IIC |
Microchip |
|
|
| 7 |
FN070MGRGXX016A |
G+G |
151*90.50 |
179*118.5 |
-20-70 |
-30-80 |
IIC |
Microchip |
|
|
| 10.1 |
FN101PGRGXX |
G+G |
217.76*136.40 |
260.00*180.00 |
-20-70 |
-30-80 |
USB |
Microchip |
|
|
| 10.1 |
FN101GGRGXX |
G+G |
217.96*136.60 |
269.60*189.20 |
-20-70 |
-30-80 |
IIC |
Microchip |
|
|
| 10.4 |
FN104MGRGXX |
G+G |
157.48*210.20 |
179.23*240.23 |
-20-70 |
-30-80 |
IIC |
Microchip |
|
|
| 12.1 |
FN121PGRGUL |
G+G |
246.76*185.32 |
310.00*260.00 |
-20-70 |
-30-80 |
USB |
Microchip |
|
|
| 13.3 |
FN133PGRGUL |
G+G |
294.17*165.78 |
341.17*212.78 |
-20-70 |
-30-80 |
USB |
Microchip |
|
|
| 15 |
FN150PGRGRL |
G+G |
305.13*229.10 |
374.65*298.45 |
-20-70 |
-30-80 |
USB |
Microchip |
|
|
| 15.6 |
FN156PGRGXX |
G+G |
345.50*194.80 |
381.40*241.60 |
-20-70 |
-30-80 |
USB |
Microchip |
|
|
| 18.5 |
FN185PGRGXX |
G+G |
410.80*231.90 |
460.70*281.85 |
-20-70 |
-30-80 |
USB |
Microchip |
|
|
| 21.5 |
FN215A021-V1.0 |
G+G |
479.04*270.51 |
515.00*320.00 |
-20-70 |
-30-80 |
USB |
Microchip |
|
|
| 23.8 |
FN238PGRGXX |
G+G |
530.44*299.86 |
563.00*337.40 |
-20-70 |
-30-80 |
USB |
Microchip |
|
|
| 27 |
FN270PGRGXX |
G+G |
600.29*338.71 |
648.00*386.40 |
-20-70 |
-30-80 |
USB |
Microchip |
|
|
| 32 |
FN320PGRGXX |
G+G |
701.80*396.25 |
750.40*445.00 |
-20-70 |
-30-80 |
USB |
Microchip |
|
|
