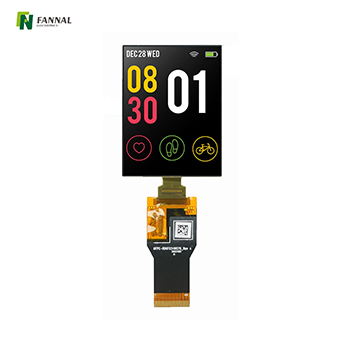

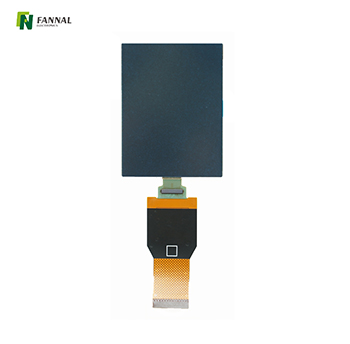

2.4英寸 AMOLED 显示屏 450×600 800cd/m² 45PINS MIPI/CPU/SPI

特点介绍:

款AMOLED显示屏通过增强的清晰度和身临其境的色彩，让您的视觉效果栩栩如生。凭借450x600像素分辨率，它确保每个细节都清晰明了。MIPI、SPI和MCU接口提供无缝集成，支持多功能设备开发。自发光AMOLED技术提供深黑色、高对比度和低能效，使其成为需要长电池寿命的可穿戴设备、便携式显示器和智能设备的理想选择。

主要参数:

项目	描述	单位
LCD 尺寸	2.4	寸
分辨率	450x600
视角(θT/θB/θL/θR)	ALL
亮度	800
接口	MIPI&MCU&SPI
触摸屏	如有需求请联系销售

接口及电气特性:

接口:

Pin No.	Symbol	I/O	Description
1	GND	P	Ground.
2	GND	P	Ground.
3	ELVSS	P	Negative power supply for panel.
4	ELVSS	P	Negative power supply for panel.
5	GND	P	Ground.
6	ELVDD	P	Positive power supply for panel.
7	ELVDD	P	Positive power supply for panel.
8	GND	P	Ground.
9	VCI	P	Power supply for display driver IC interface analogic system.
10	GND	P	Ground.
11	VDDIO	P	Power supply for display driver IC interface and logic system.
12	GND	P	Ground.
13	TE1	O	IC Status active reporting pin.
14	SWIRE	O	Swire protocol setting pin of Power IC.
15	TE	O	Tearing effect output pin to synchronize MCU to frame writing, activated by S/W command. When this pin is not activated, this pin is output low.
16	RESX	I	Display driver reset, must be applied to properly initialize the chip. Signal is active low.
17	GND	P	Ground.
18	SDI_RDX	I/O	SDl: Serial input signal in SPl l/F. The data is input on the rising edge of the SCL signal. RDX:Reads strobe signal to write data when RDX is “Low" in 80-series MPU interface.
19	DCX	I	Display data/command selection in 80-series MPUl/F and 4-wire SPl l/F.
20	SCL	I	WRX :Writes strobe signal to write data when WRX is “Low" in 80-series MPU I/F. SCL: A synchronous clock signal in SPl l/F.
21	CSX	I	Chip select input pin( "Low" enable)in 80-series.
22-29	D0-D7	I/O	8-bit bi-directional data bus for 80-series MPU l/Fand 8-bit input data bus for RGB l/F.
30	GND	P	Ground.
31	IM1	I/O	Interface type selection.
32	IM0	I/0	Interface type selection.
33	GND	P	Ground.
34	GND	P	Ground.
35	D0P	I/O	Differential data signals if MIPI interface.
36	D0N	I/O	Differential data signals if MIPI interface.
37	GND	P	Ground.
38	GND	P	Ground.
39	CLKP	I	Differential data signals if MIPI interface.
40	CLKN	I	Differential data signals if MIPI interface.
41	GND	P	Ground.
42	GND	P	Ground.
43	MTP	P	MTP programming power supply. Must be left open or connected to GND in normal condition.
44	GND	P	Ground.
45	GND	P	Ground.

电气特性:

Parameter	Symbol:	Min.	Typ.	Max.	Unit
OLED input Voltage	ELVDD	2.0	3.6	6	V
OLED output voltage	VDDIO	-4.7	-3.6	-0.4	V
