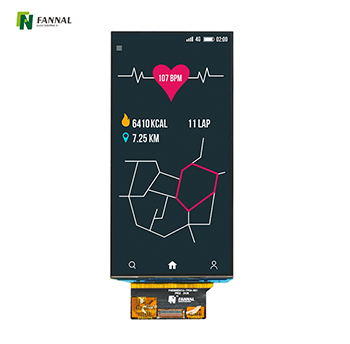

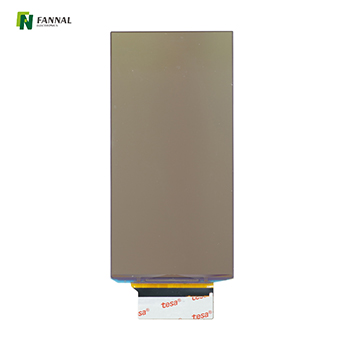

5.9英寸工业AMOLED显示屏 1080*2220 400亮度 39PINS MIPI

特点介绍:

主要参数:

接口及电气特性:

接口:

Pin No.	Symbol	I/O	Description
1	GND	P	Ground.
2	ELVSS	P	Negative power supply for panel.
3	D3N	I	MIPI DSI Negative differential data signal.
4	ELVSS	I	Negative power supply for panel.
5	D3P	I	MIPI DSI Positive differential data signal.
6	ELVSS	P	Negative power supply for panel.
7	GND	P	Ground.
8	NC	-	No connection.
9	D0N	I	MIPI DSI Negative differential data signal.
10	ELVDD	P	Positive power supply for panel.
11	D0P	I	MIPI DSI Positive differential data signal.
12	ELVDD	P	Positive power supply for panel.
13	GND	P	Ground.
14	ELVDD	P	Positive power supply for panel.
15	CLKN	I	MIPI DSI Negative clock signal.
16	AVDD	P	Signal analog voltage.
17	CLKN	I	MIPI DSI Positive clock signal.
18	VCI	P	Supply analog voltage.
19	GND	P	Ground.
20	VDDI	P	Power supply for I/O block provided from outside.
21	D1N	I	MIPI DSI Negative differential data signal.
22	NC	-	No connection.
23	D1P	I	MIPI DSI Positive differential data signal.
24	EL_CTRL	O	PMIC control signal.
25	GND	P	Ground.
26	EL_EN	O	PMIC enable signal.
27	D2N	I	MIPI DSI Negative differential data signal.
28	TE	O	Monitor pin of TE (Tearing Effect) logic signal.When this pad is not activated, this signal stays low.
29	D2P	I	MIPI DSI Positive differential data signal.
30	ERR_FG	O	Purpose on test for MIPI status.
31	GND	P	Ground.
32	RESX	P	Active low. This signal is used to reset the device and must be applied to initialize the chip properly.
33	NC	-	No connection.
34	GND	P	Ground.
35	NC	-	No Connection.
36	VTOP	P	External Voltage Input for OTP DataProgram.
37	NC	-	No Connection.
38	VDDI	P	Power supply for I/O block provided from outside.
39	GND	P	Ground.

电气特性:
