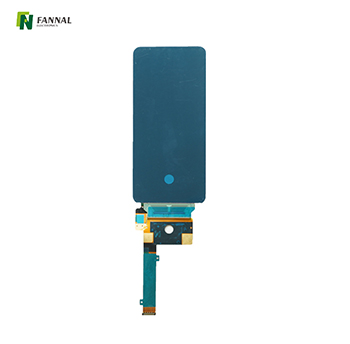

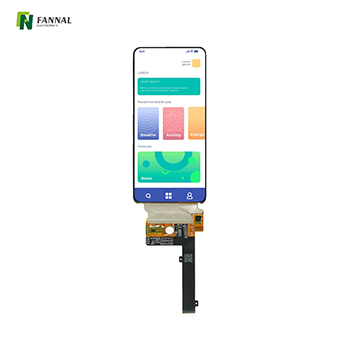

6.39 英寸 AMOLED 显示屏，1080×2340，MIPI，430cd/m²

特点介绍:

主要参数:

接口及电气特性:

接口:

Pin No.	Symbol	I/O	Description
1	AVDD	P	Driver IC power supply for charge pump.
2	VCI(2.8V)	P	Driver IC analog power supply.
3	VDDIO	P	Driver IC regulator power supply.
4	I_SPDI	-	No Connection.
5	I_SPDO	-	No Connection.
6	I-SPCS	-	No Connection.
7	I_SPCK	-	No connection.
8	GND	P	Power Ground.
9	D2P	I	MIPI DSI positive differential data signal.
10	D2N	I	MIPI DSI negative differential data signal.
11	GND	P	Power Ground.
12	D1P	I	MIPI DSI positive differential data signal.
13	D1N	I	MIPI DSI negasitive differential data signal.
14	GND	P	Power Ground.
15	CLKP	-	MIPI DSI Positive clock signal.
16	CLKN	I	MIPI DSI negative clock signal.
17	GND	P	Power Ground.
18	D0P	I	MIPI DSI Positive differential data signal.
19	D0N	I	MIPI DSI Negative differential data signal.
20	GND	P	Ground.
21	D3P	I	MIPI DSI Positive differential data signal.
22	D3N	I	MIPI DSI Negative differential data signal.
23	GND	P	Power ground.
24	VPP/OTP9(NC)	-	No connection.
25	GND	P	Power ground.
26-28	ELVSS	I	AMOLED Negative power.
29	GND	P	Power ground.
30-32	ELVDD	P	AMOLED Positive power.
33	GND	P	Power ground.
34	RESET	I	Reset signal input.
35	AVDD_EN	O	Power IC enable.
36	SWIRE	O	Power IC control pin.
37	ERR_PG(NC)	-	No Connection.
38	PCD(NC)	-	No Connection.
39	TE	O	Tear effect output.
40	ID0	-	No Connection.
41	ID1	-	No Connection.
42	GND	P	Power ground.

电气特性:
