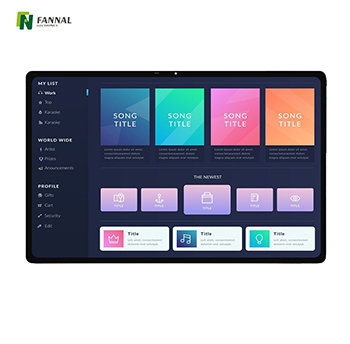

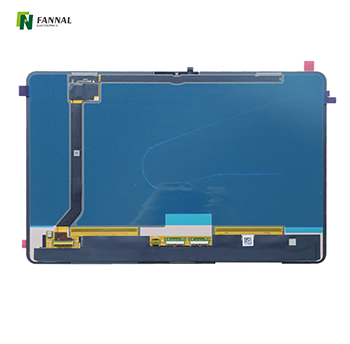

12.6 英寸工业 AMOLED 显示屏 1600*2560 51PINS MIPI

特点介绍:

高分辨率清晰度： 1600×2560 分辨率提供出色的清晰度，提供清晰明快的视觉效果。像素密度旨在满足高端设备对图像质量和细节至关重要的需求。
AMOLED 显示技术：此显示屏利用 AMOLED 技术，使每个像素都能独立发光。这可呈现深黑色、丰富色彩和高对比度，非常适合生动的视觉体验和省电效率。
MIPI 接口可实现快速数据传输： MIPI 接口可确保显示器快速可靠地传输数据，非常适合性能和响应能力至关重要的实时应用。它与现代设备的兼容性可确保无缝集成。400cd/m² 亮度：显示屏亮度为 400cd/m²，确保在光线充足的环境下清晰可读，同时在室内使用时仍节能，使其适用于多种环境。

主要参数:

项目	描述	单位
LCD 尺寸	12.6	寸
分辨率	1600x2560
视角(θT/θB/θL/θR)	ALL
亮度	400
接口	MIPI
触摸屏	如有需求请联系销售

接口及电气特性:

接口:

Pin No.	Symbol	I/O	Description
1	NC	-	No Connection.
2	NC	-	No Connection.
3	GND	P	Ground.
4	TP_Report_EN	I	Reserve pin ,lf not used, please open this pin.
5	TP_RST	I	Reset pin for touch, active low.
6	TP_INT_Sensorhub	I	Reserve pin ,f not used, please open this pin.
7	TP_INT for AP	I	Interrupt pin for Touch.
8	TP_SPI_CS0	I	SPl Chip select pin for TP.
9	TP_SPI_SCK	I	SPl Clock pin for TP.
10	TP_SPI_MOSI	I	SPI MOSl pin for TP spi.
11	TP_SPI_MISO	I	SPI MOSl pin for TP spi.
12	GND	P	Ground.
13	TSP_SDA	I	Reserve pin, please open this pin.
14	TSP_SCL	I	Reserve pin, please open this pin.
15	TP IC CLK	I	Reserve pin, please open this pin.
16	TSP_1.8V	P	TP lOVCC power.
17	TSP_3.3V	P	TP AVDD power.
18	GND	P	Ground.
19	MIPI_D3N_L	I	DSI-D3- of Master lC MIPl.
20	MIPI_D3P_L	I	DSI-D3+ of Master lC MIPl.
21	GND	P	Ground.
22	MIPI_D2N_L	I	DSI-D2- of Master lC MIPl
23	MIPI_D2P_L	I	DSI-D2+ of Master lC MIPl
24	GND	P	Ground.
25	MIPI_CLKN_L	I	DSI-CLK-of MasterIC MIPI.
26	MIPI_CLKP_L	I	DSI-CLK+ of Master lC MIPI.
27	GND	P	Ground.
28	MIPI_D1N_L	I	DSI-D1- of Master IC MIPl.
29	MIPI_D1P_L	I	DSI-D1+ of Master IC MIPl.
30	GND	P	Ground.
31	MIPI_D0N_L	I	DSI-D0- of Master IC MIP.
32	MIPI_D0P_L	I	DSI-D0+ of Master IC MIP.
33	GND	P	Ground.
34	ERR_FG	O	Output pin used to monitor display driver state and error status of MIP's HSDT.
35	EL_12C_SCL	I/O	(12C) SCL clock l/O pin for PMIC.
36	EL_I2C_SDA	I/O	(12C) SCL data l/O pin for PMIC.
37-39	1.8V	P	VDDI for DDIC.
40	ID0	O	ID Pin, Output pin, internally connect 1.8V, lf not used, please open this Pin.
41	ID1	O	ID Pin, Output pin, internally connect GND, lf not used,
42	NC	-	No connection.
43	E_AVDD	P	Power supply for DDlC Analog system.
44	NC	-	No Connection.
45	GND	P	GROUND.
46	AVDD EN	I	Power lC enable control pin.
47	SWIRE	I	Swire protocol setting pin of power IC.
48	NC	-	No connection.
49	NC	-	No connection.
50	ELVSS	P	ELVSS for OLED.

电气特性:

Parameter	Symbol:	Min.	Max.	Unit
Analog/boost power voltage	VCI	-0.3	5.5	V
I/O voltage	VDDDIO	-0.3	5.5	V
