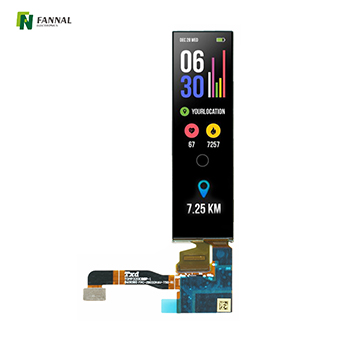

对于希望打造创新且用户友好的可穿戴设备、将功能性与出色的视觉性能相结合的开发人员来说，这款 AMOLED 显示屏是一个绝佳的选择。
| 项目 | 描述 | 单位 |
| LCD 尺寸 | 3.189 | 寸 |
| 分辨率 | 262x928 | |
| 视角(θT/θB/θL/θR) | ALL | |
| 亮度 | 500 | |
| 接口 | MIPI | |
| 触摸屏 | 如有需求请联系销售 | |
|
Pin No. |
Symbol |
I/O |
Description |
| 1 | GND | P | Ground. |
| 2 |
GND |
P |
Ground. |
| 3 | LCM_CLKN | I/O |
MIPI DSI clock signal. |
| 4 | VCI_EN | I | Active high enable input pin for VCI. |
| 5 | LCM_CLKP | I/O | MIPI DSI positive clock signal. |
|
6 |
GND |
P |
Ground. |
| 7 | GND | P | Ground. |
| 8 | LCD_IO(1.8V) | P | DIC Logic 1.8V. |
| 9 | LCM_D1P | I | MIPI DSI Negative differential data signal. |
| 10 | GND | P | Ground. |
| 11 | LCM_D1P | I | MIPI DSI Positive differential data signal. |
| 12 |
LCD_RESET |
I | Reset signal input. |
| 13 | GND | P | Ground. |
| 14 | LCM_ID | I | ID. |
| 15 |
LCM_D0N |
I |
MIPI DSI Negative differential data signal. |
| 16 | GND | P | Ground. |
| 17 |
LCM_D0P |
I |
MIPI DSI Positive differential data signal. |
| 18 | VCC_CTP | P | TP Power 2.8V. |
| 19 | GND | P | Ground. |
| 20 | GND | P | Ground. |
| 21 | LCM_TE | O | Synchronous signal output from panel to avoid tearing effect. |
| 22 | CTP_RESRT | I | TP reset signal. |
电气特性:
|
Parameter |
Symbol: |
Min. |
Max. |
Unit |
|
EL Driving Voltage |
ELVDD |
-0.3 |
5.5 |
V |
| Module Operation voltage | VDDIO | -0.3 | 5.5 | V |
