4.3寸电容触摸屏

P/N: FN043IGRGXX

Structure: G+G

TP VA (mm): 96.24*54.66

Outline (mm): 104.80*66.50

Sensor OD(mm): 104.20*64.53

OP(℃): -20-70

ST(℃): -30-80

Interface: IIC

CTP IC: ILITEK

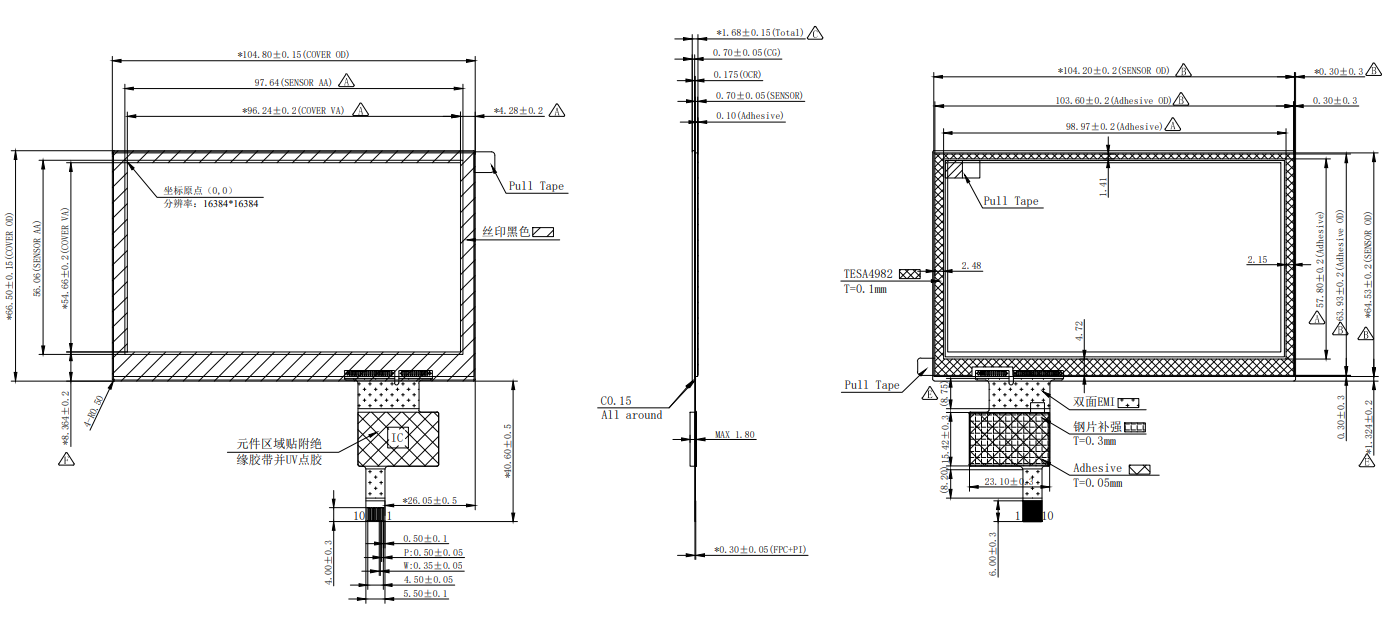

规格图 产品规格
产品规格
Construction:
Construction Materials Remark
Cover Glass Chemical strengthened glass Thickness: 0.7mm±0.05mm
Optical clear adhesive Adhesive Thickness: 0.175mm±0.05mm
ITO Glass ITO Glass Double side ITO glass; Thickness: 0.7mm±0.05mm
Mechanical characteristics:
item Description Unit
Touch Module Size 4.3 inch
Outer Dimension 104.80*66.50 mm
View Area 96.24*54.66 mm
Sensor Area 104.20*64.53 mm
Cover Thickness 0.7 mm
Number of Touch 5
Interface I2C
Controller ILITEK
