5.0寸触控面板

P/N: FN050IGRGXX

Structure: G+G

TP VA (mm): 109.00*65.80

Outline (mm): 147.00*104.00

Sensor OD(mm): 120.05*75.13

OP (℃): -20-70

ST (℃): -30-80

Interface: IIC

CTP IC: ILITEK

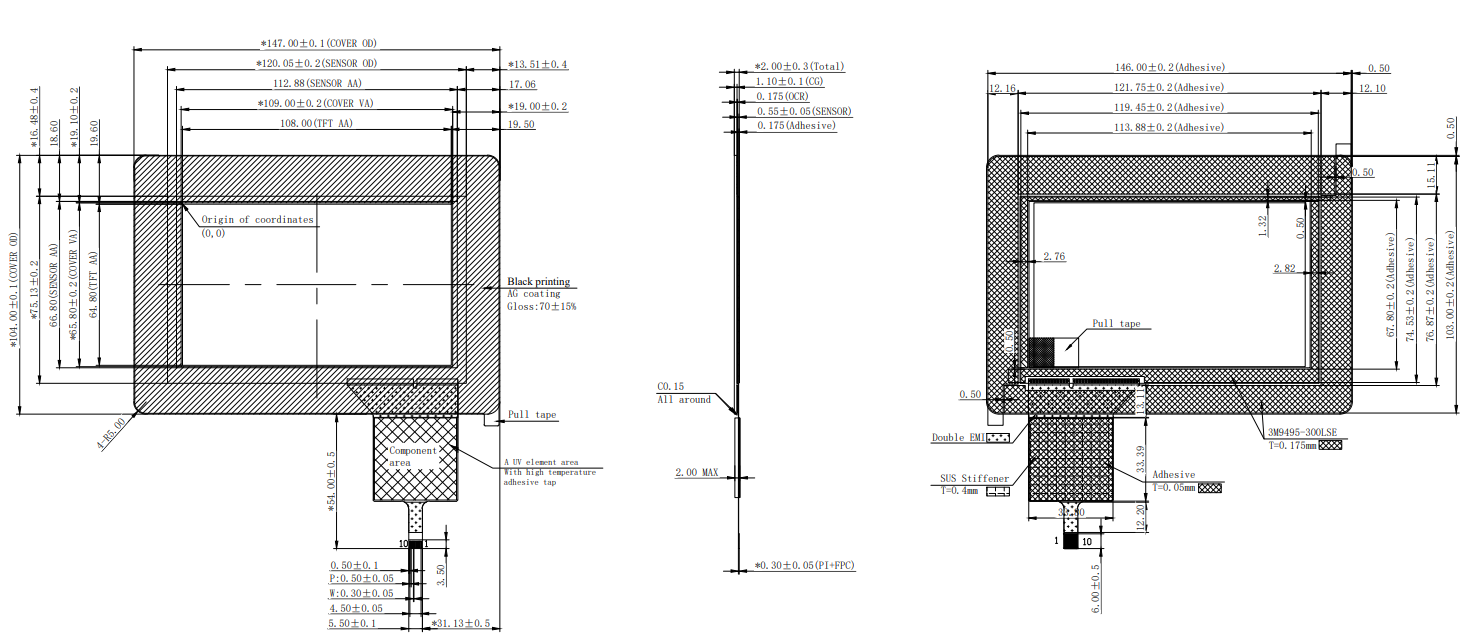

规格图 产品规格
产品规格
Construction:
Construction Materials Remark
Cover Glass Chemical strengthened glass Thickness: 1.1mm±0.05mm
Optical clear adhesive OCR Thickness: 0.175mm±0.05mm
ITO Glass ITO Glass Double side ITO glass; Thickness: 0.55mm±0.05mm
Mechanical characteristics:
item Description Unit
Touch Module Size 5.0 inch
Outer Dimension 147.00*104.00 mm
View Area 109.00*65.80 mm
Sensor Area 120.05*75.13 mm
Cover Thickness 1.1 mm
Number of Touch 10
Input Type I2C + USB
Control Type ILITEK
