| Construction | Materials | Remark |
| Cover Glass | Chemical strengthened glass | Thickness: 0.7mm±0.05mm |
| Optical clear adhesive | OCR | Thickness:0.175mm±0.05mm |
| ITO Glass | ITO Glass | Double side ITO glass; Thickness: 0.7mm±0.05mm |
| item | Description | Unit |
| Touch Module Size | 5.7 | inch |

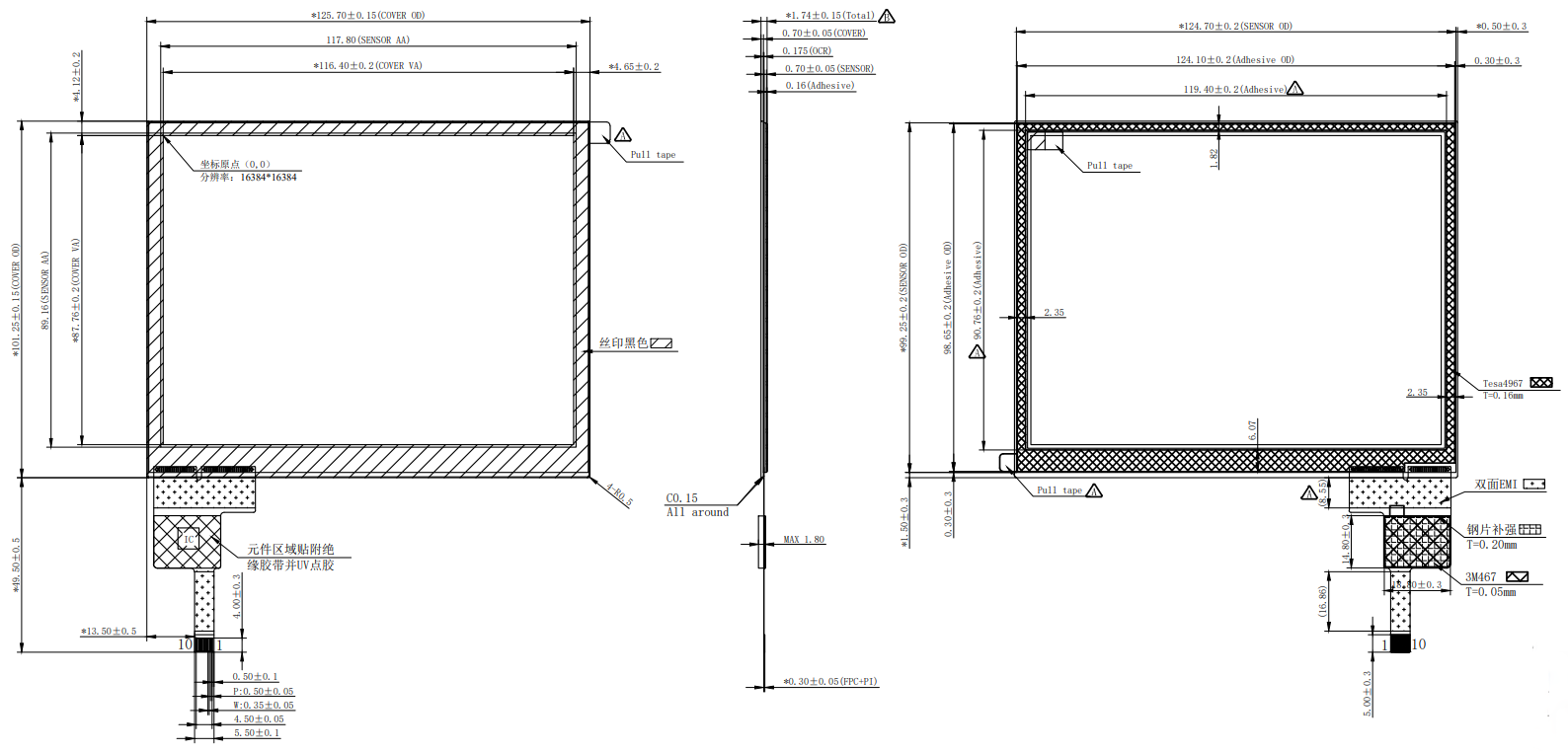

| Outer Dimension | 125.70*101.25 | mm |
| View Area | 116.40*87.76 | mm |
| Sensor Area | 124.70*99.25 | mm |
| Cover Thickness | 0.70 | |
| Number of Touch | 5 | |
| Input Type | I2C | |
| Control Type | ILITEK |
