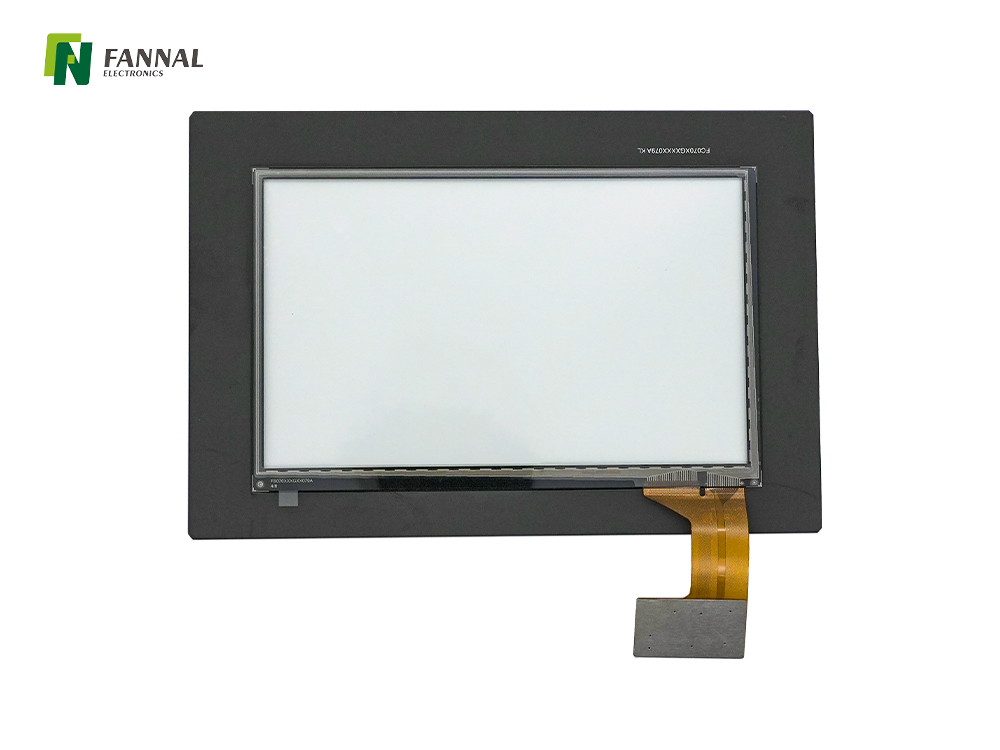

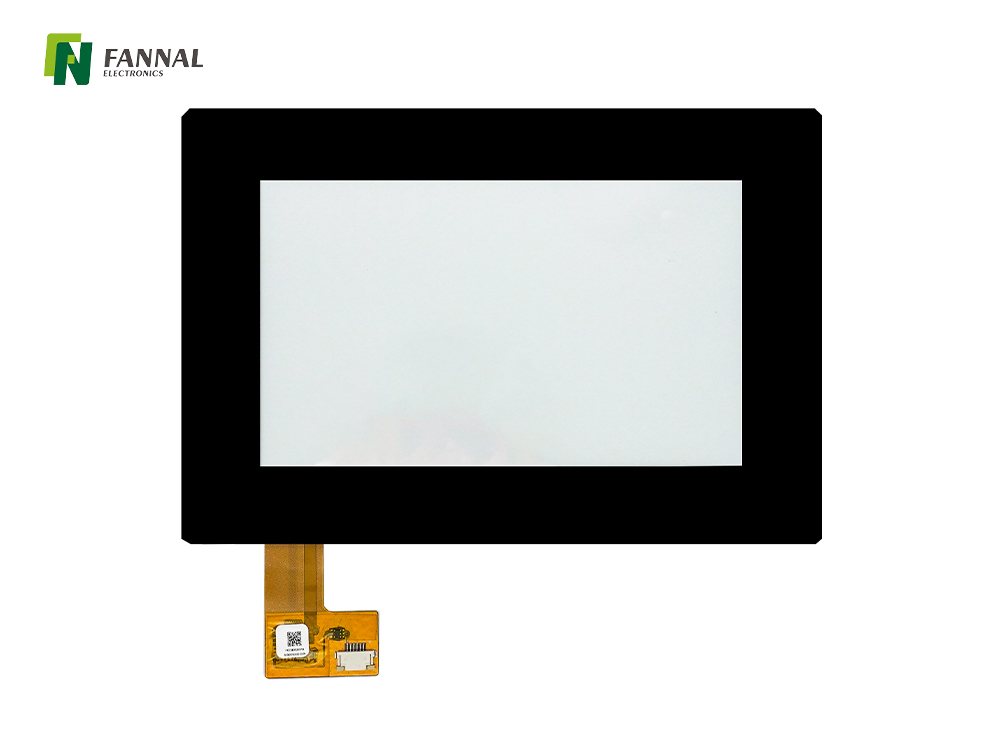

7寸电容触摸屏

P/N: FN070MGRGXX

Structure: G+G

TP VA (mm): 151.00*90.50

Outline (mm): 179.00*118.50

Sensor OD(mm): 168.00*106.00

OP (℃): -20-70

ST(℃): -30-80

Interface: IIC

CTP IC: Microchip

规格图 产品规格
产品规格
Construction:
Structure Materials Remark
Cover Glass Strengthened glass Thickness: 1.1mm±0.05mm
Optical clear adhesive OCR Thickness: 0.175mm±0.05mm
ITO Glass ITO Glass Double side ITO glass; Thickness: 0.7mm±0.05mm
Mechanical characteristics:
item Description Unit
Touch Module Size 7.0 inch
Outer Dimension 179.00*118.50 mm
View Area 151.00*90.50 mm
Sensor Area 168.00*106.00 mm
Cover Thickness 1.1 mm
Number of Touch 5
Interface I2C
Controller Microchip
