| Structure | Materials | Remark |
| Cover Glass | Chemical strengthened glass | Thickness: 3.0 mm±0.05mm |
| Optical clear adhesive | OCR | Thickness: 0.175mm±0.05mm |
| ITO Glass | ITO Glass | Double side ITO glass; Thickness:0.55mm±0.05mm |
| Item | Description | Unit |
| Touch Module Size | 7.0 | inch |

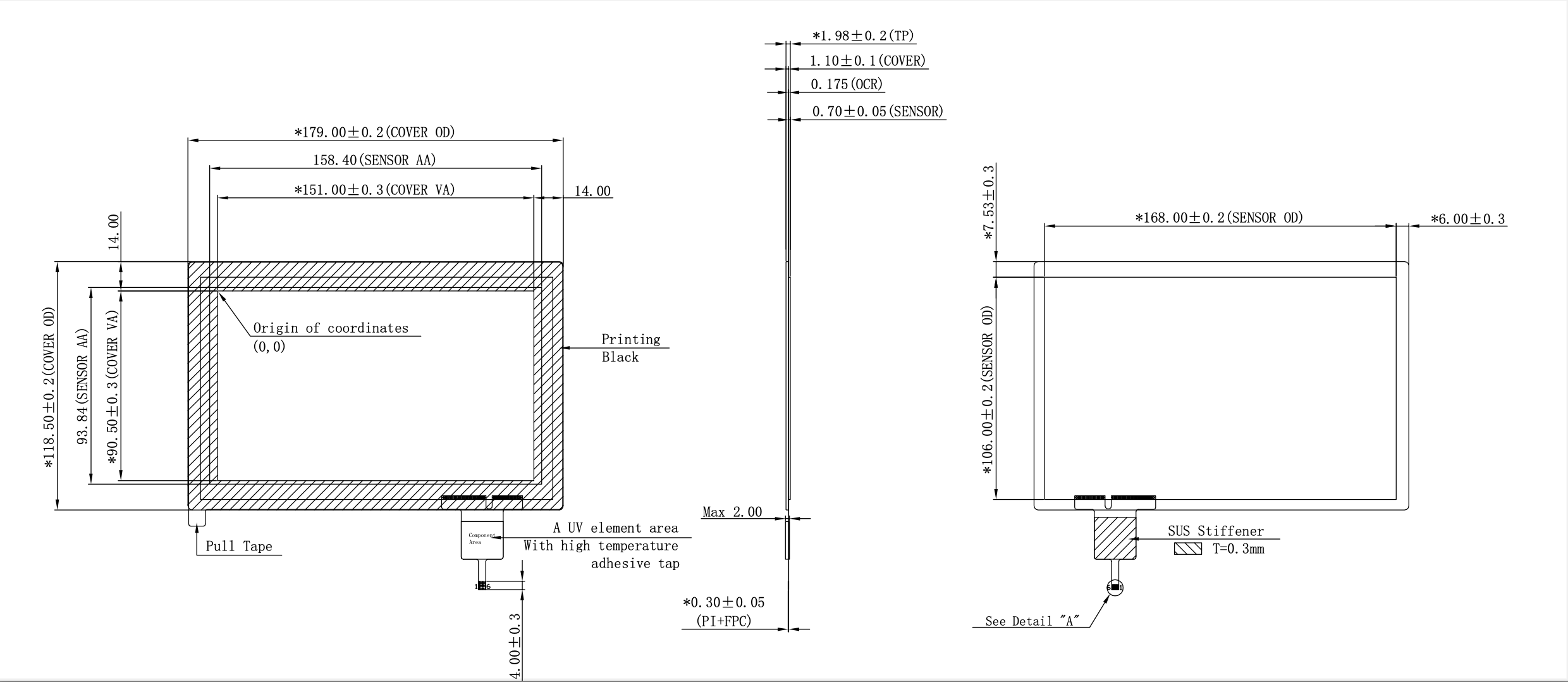

| Outer Dimension | 151*90.50 | mm |
| View Area | 179*118.5 | mm |
| Sensor Area | 168*106*0.7 | mm |
| Cover Thickness | 0.7 | mm |
| Number of Touch | 5 | |
| Interface | I2C | |
| Controller | Microchip |
