| Structure | Materials | Remark |
| Cover Glass | Strengthened glass | Thickness: 2.0mm±0.05mm |
| Optical clear adhesive | OCR | Thickness: 0.175mm±0.05mm |
| ITO Glass | ITO Glass | Double side ITO glass; Thickness: 0.7mm±0.05mm |
| Item | Description | Unit |

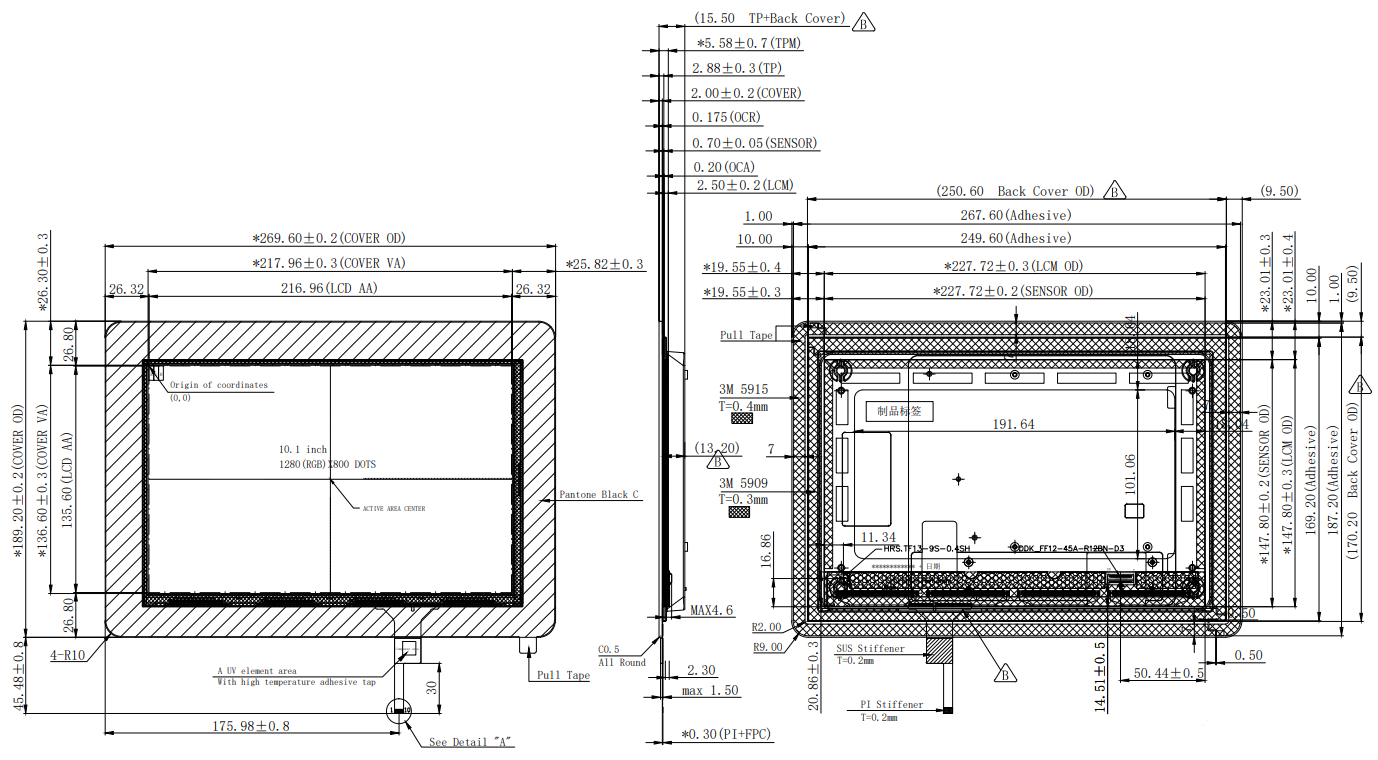

| Touch Module Size | 10.1 | inch |
| Outer Dimension | 269.60*189.20 | mm |
| View Area | 217.96*136.60 | mm |
| Sensor Area | 227.72*147.80 | mm |
| Cover Thickness | 2.0 | mm |
| Number of Touch | 5 | |
| Input Type | I2C | |
| Control Type | Microchip |
