23.8寸触摸显示屏

 P/N: FN238PGRGXX

Structure: G+G

TP AA (mm): 530.44*299.86

Outline (mm): 563.00*337.40

Sensor OD(mm): 548.60*332.23

OP(℃): -20-70

ST(℃): -30-80

Interface: USB

CTP IC: Microchip

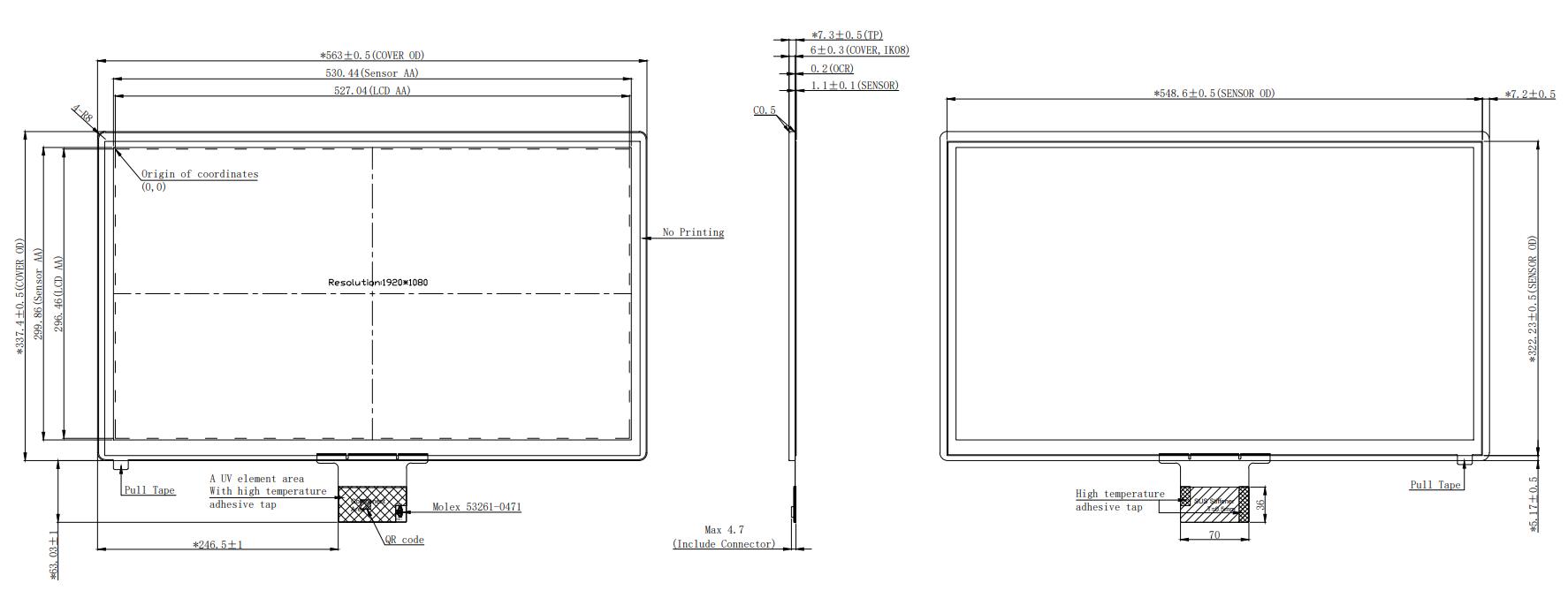

规格图 产品规格

产品规格
Construction:

Structure Materials Remark
Cover Glass Thermal strengthened glass Thickness: 6.0mm±0.05mm
Optical clear adhesive OCR Thickness: 0.2mm±0.05mm
ITO Glass ITO Glass Double side ITO glass; Thickness: 1.1mm±0.05mm
Mechanical characteristics:

Item Description Unit
Touch Module Size 23.8 inch
Outer Dimension 563.00*337.40 mm
AA 530.44*299.86 mm
Sensor Area 548.60*332.23 mm
Cover Thickness 6.0 mm
Number of Touch 5
Interface USB
Controller Microchip
