| Structure | Materials | Remark |
| Cover Glass | Thermal strengthened glass | Thickness: 6.0mm±0.05mm |
| Optical clear adhesive | OCR | Thickness: 0.2mm±0.05mm |
| ITO Glass | ITO Glass | Double side ITO glass; Thickness:0.7mm±0.05mm |
| Item | Description | Unit |
| Touch Module Size | 27 | inch |

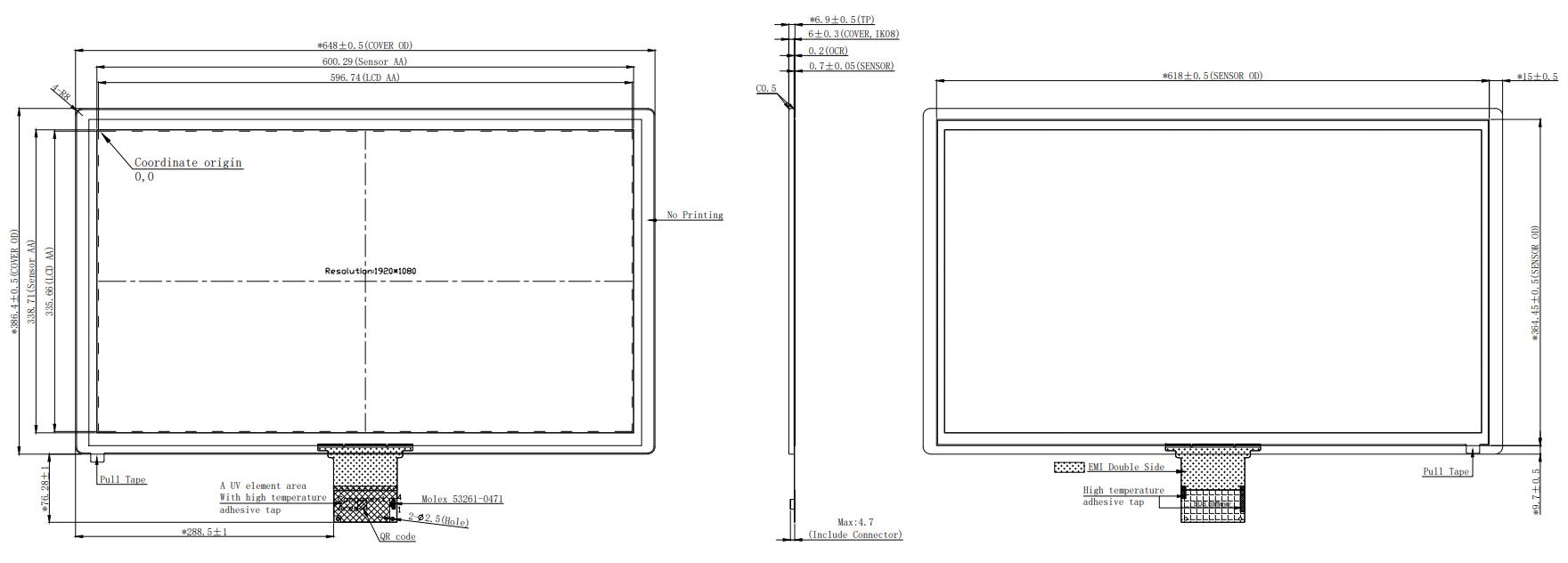

| Outer Dimension | 648.00*386.40 | mm |
| AA | 600.29*338.71 | mm |
| Sensor OD | 618.00*364.45 | mm |
| Cover Thickness | 6.0 | mm |
| Number of Touch | 5 | |
| Input Type | USB | |
| Control Type | Microchip |
