32寸大尺寸触摸屏

 P/N: FN320PGRGXX

Structure: G+G

TP AA (mm): 701.80*396.25

Outline (mm): 750.40*445.00

Sensor OD(mm): 719.70*418.20

OP(℃): -20-70

ST(℃): -30-80

Interface: USB

CTP IC: Microchip

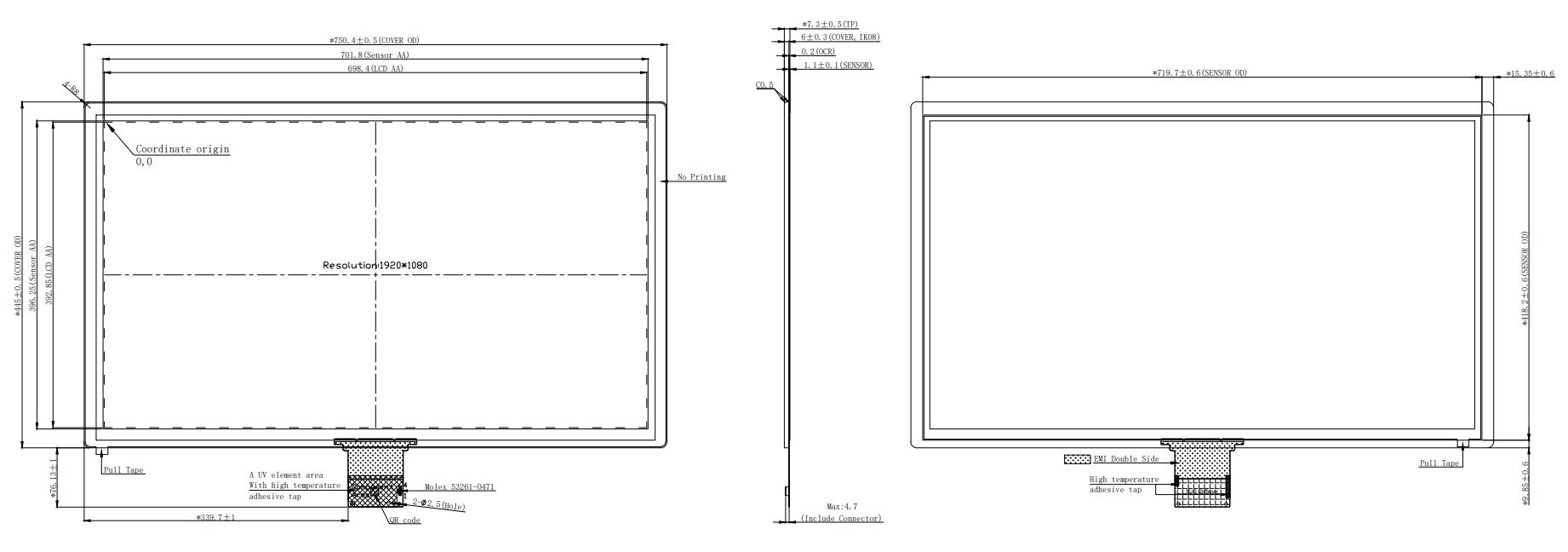

规格图 产品规格

产品规格
Construction:

Structure Materials Remark
Cover Glass Thermal strengthened glass Thickness: 6.0mm±0.05mm
Optical clear adhesive OCR Thickness: 0.2mm±0.05mm
ITO Glass ITO Glass Double side ITO glass; Thickness: 1.1mm±0.05mm
Mechanical characteristics:

Item Description Unit
Touch Module Size 32 inch
CTP Outer Dimension 750.40*445.00 mm
Sensor AA 701.80*396.25 mm
Sensor OD 719.70*418.20 mm
Cover Thickness 6.0 mm
Number of Touch 5
Touch interface USB
Touch Controller Microchip
