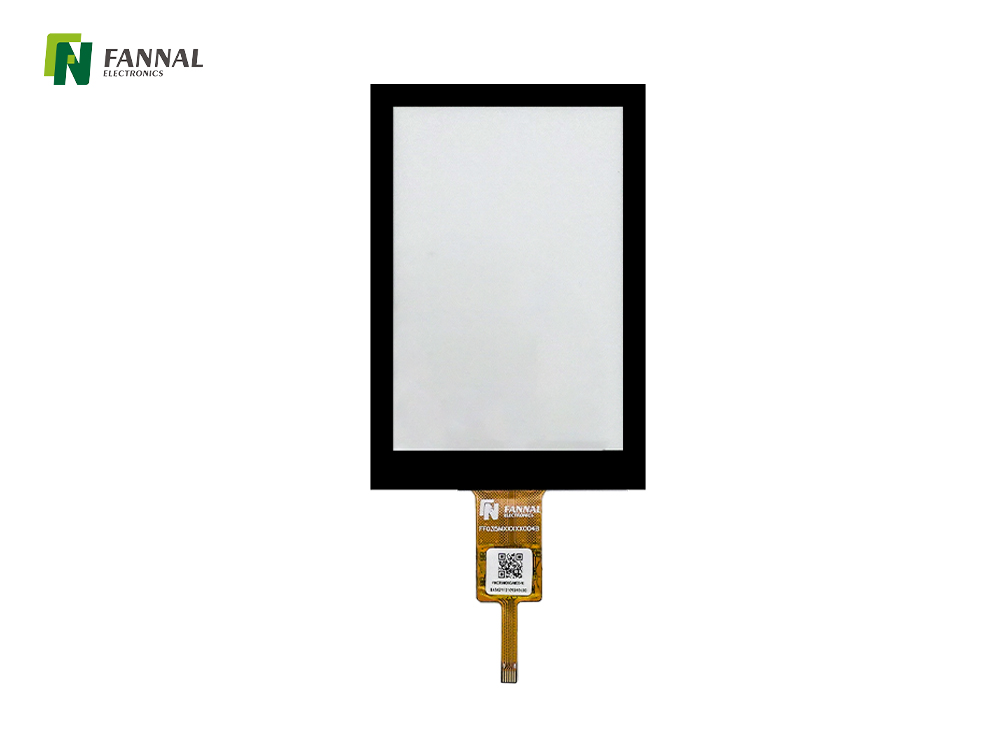

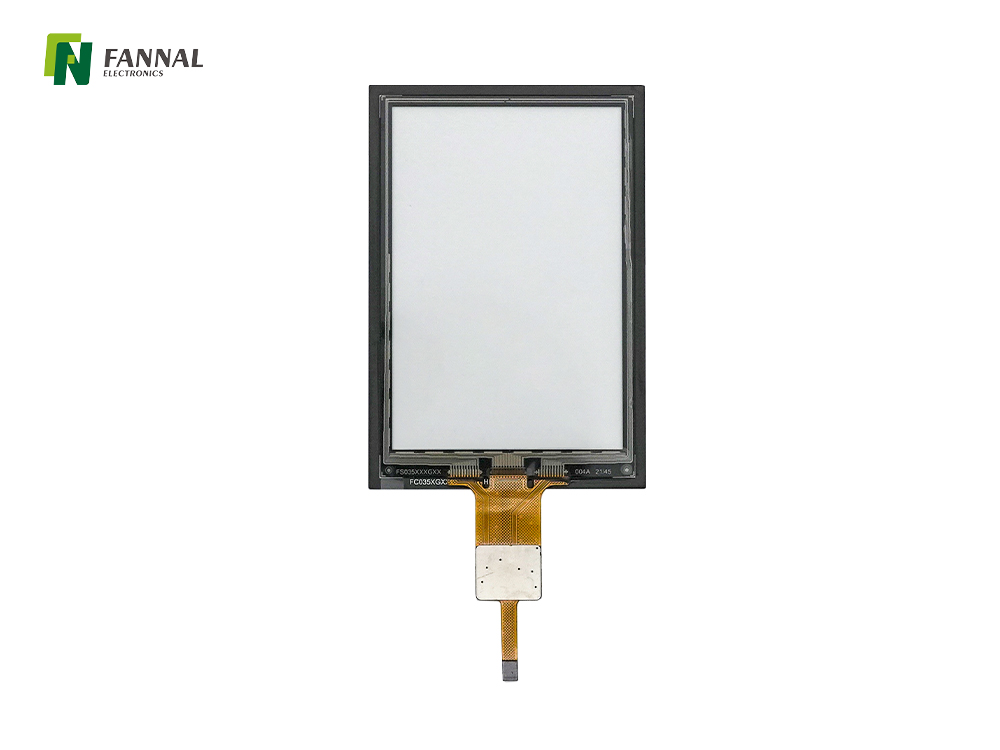

3.5 寸电容触摸屏

P/N: FN035MGRGAM

Structure: G+G

TP VA (mm): 50.52*75.48

Outline (mm): 60.90*89.18

Oprating Temp.( ℃): -20-70

Storage Temp.(℃): -30-80

Interface: IIC

CTP IC: Microchip

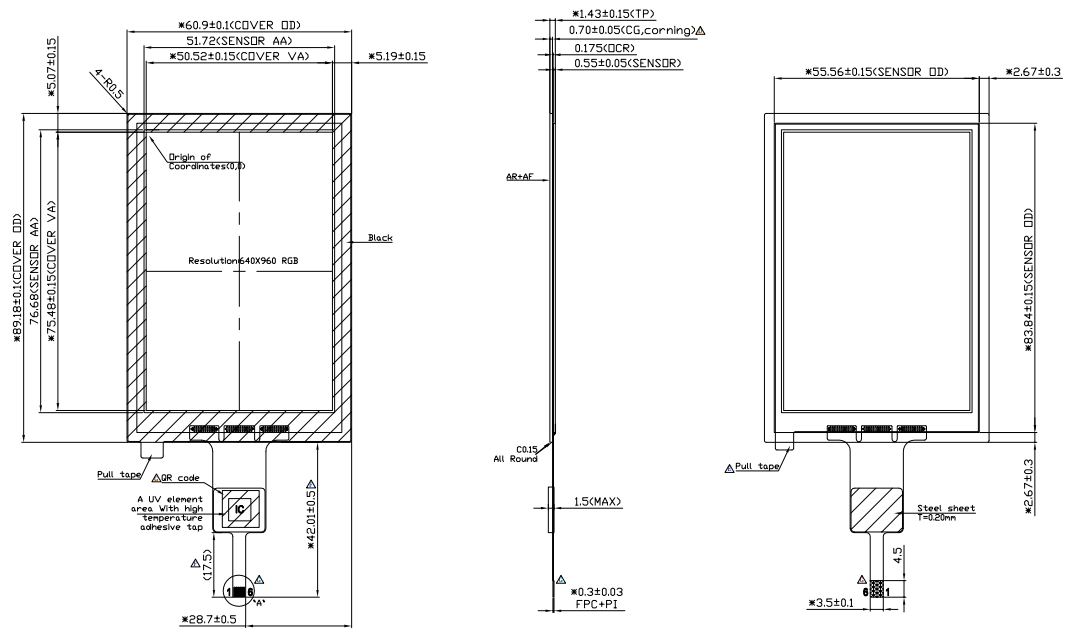

规格图 产品规格
产品规格
Construction:
Construction Materials Remark
Cover Glass Gorilla glass, AR + AF Thickness: 0.7mm±0.05mm
Optical clear adhesive OCR Thickness: 0.175mm±0.05mm
ITO Glass ITO Glass Double side ITO glass; Thickness: 0.55mm±0.05mm
Mechanical characteristics:
item Description Unit
Touch Module Size 3.5 inch
Outer Dimension 60.90*89.18 mm
View Area 50.52*75.48 mm
Cover Thickness 0.7 mm
Number of Touch 5
Interface I2C
Controller Microchip
