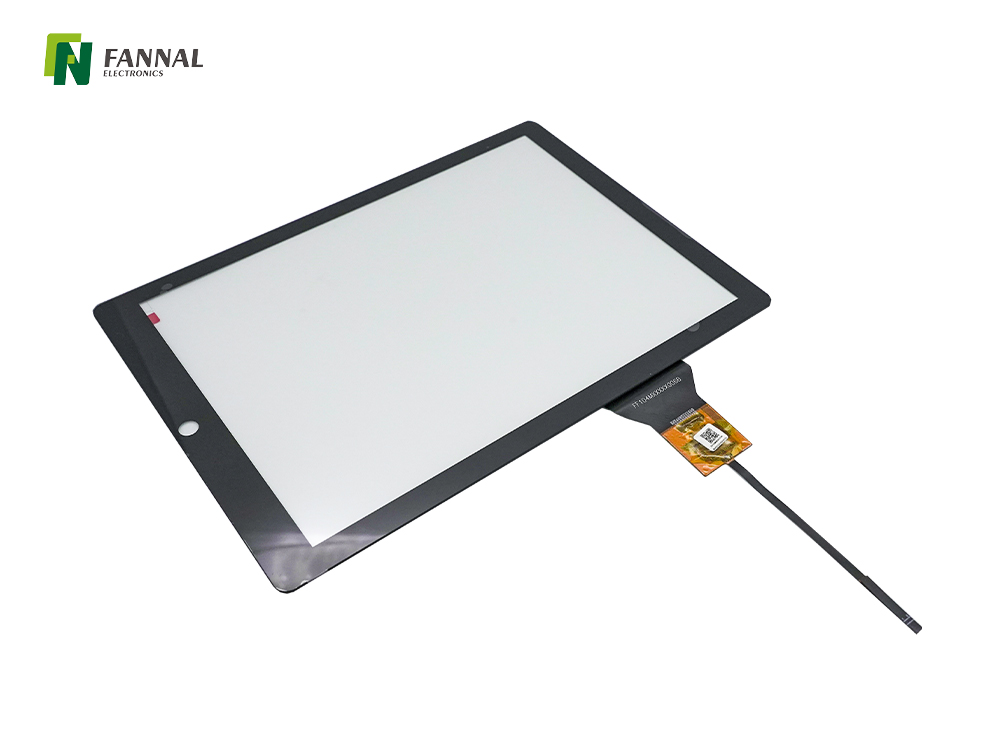

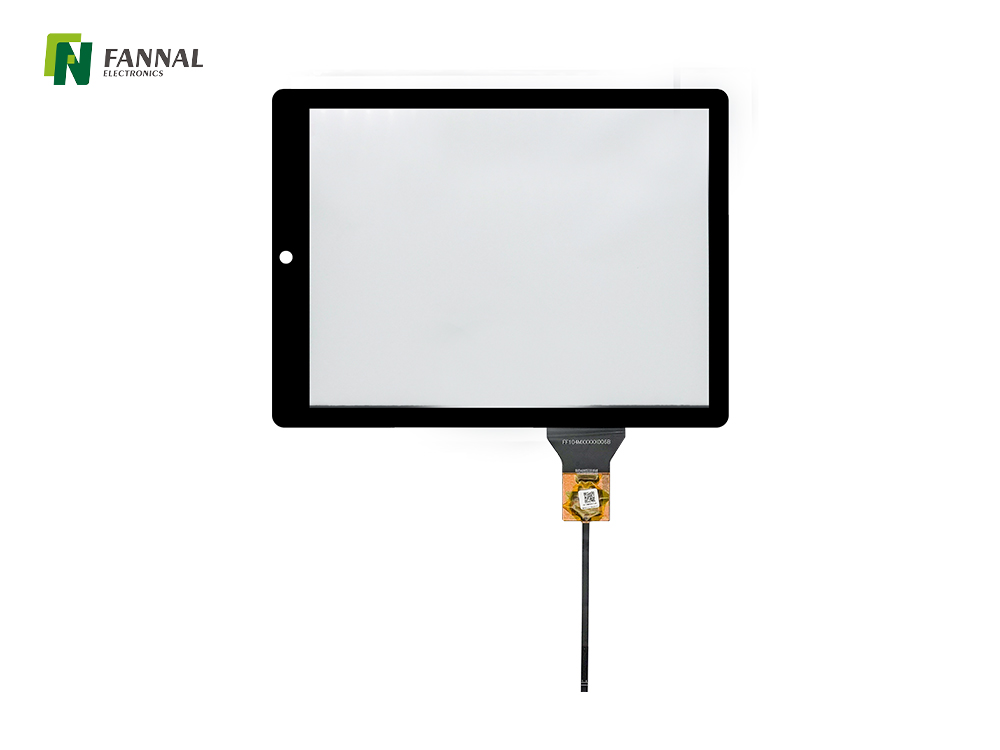

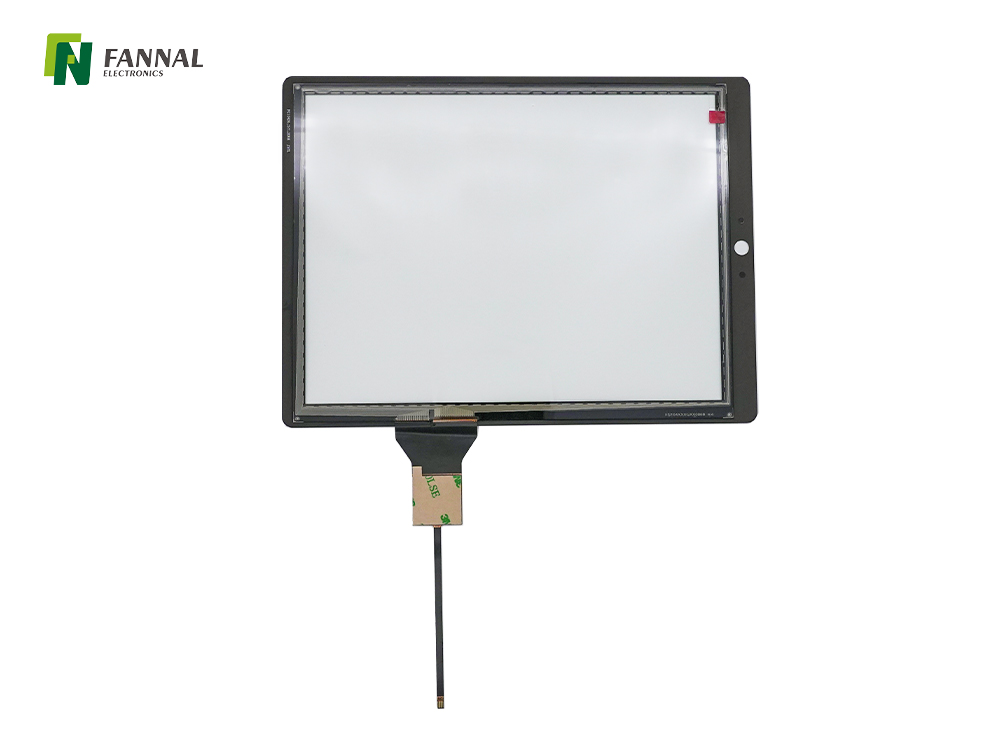

10.4寸电容触摸屏

 P/N: FN104MGRGXX

Structure: G+G

TP VA (mm): 157.48*210.20

Outline (mm): 179.23*240.23

Sensor OD(mm): 171.76*221.70

OP (℃): -20-70

ST (℃): -30-80

Interface: IIC

CTP IC: Microchip

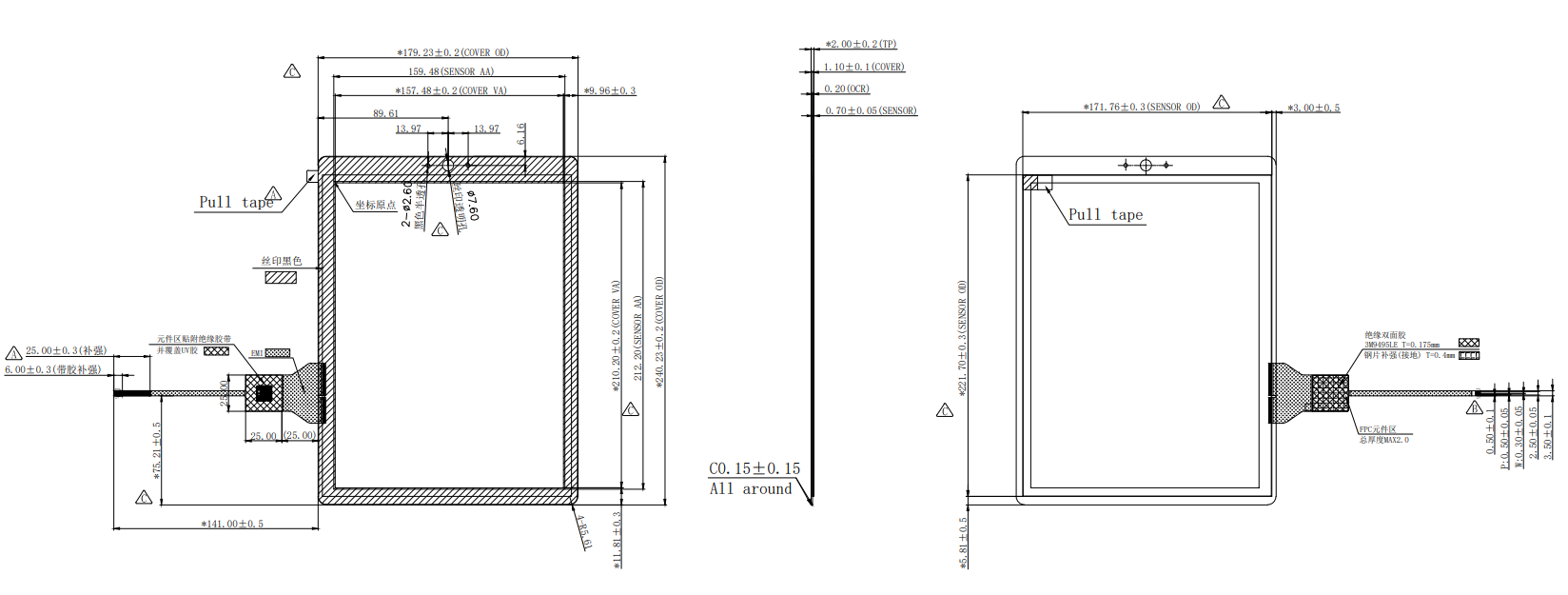

规格图 产品规格

产品规格
Construction:

Structure Materials Remark
Cover Glass Strengthened glass Thickness: 1.smm±0.05mm
Optical clear adhesive OCR Thickness: 0.175mm±0.05mm
ITO Glass ITO Glass Double side ITO glass; Thickness: 0.7mm±0.05mm
Mechanical characteristics:

Item Description Unit
Touch Module Size 10.4 inch
Outer Dimension 179.23*240.23 mm
View Area 157.48*210.20 mm
Sensor Area 171.76*221.70 mm
Cover Thickness 1.1 mm
Number of Touch 10
Interface IIC
Controller Microchip
