| Structure | Materials | Remark |
| Cover Glass | Strengthened glass | Thickness: 4.0mm±0.05mm |
| Optical clear adhesive | OCR | Thickness: 0.175mm±0.05mm |
| ITO Glass | ITO Glass | Double side ITO glass; Thickness: 1.1mm±0.05mm |

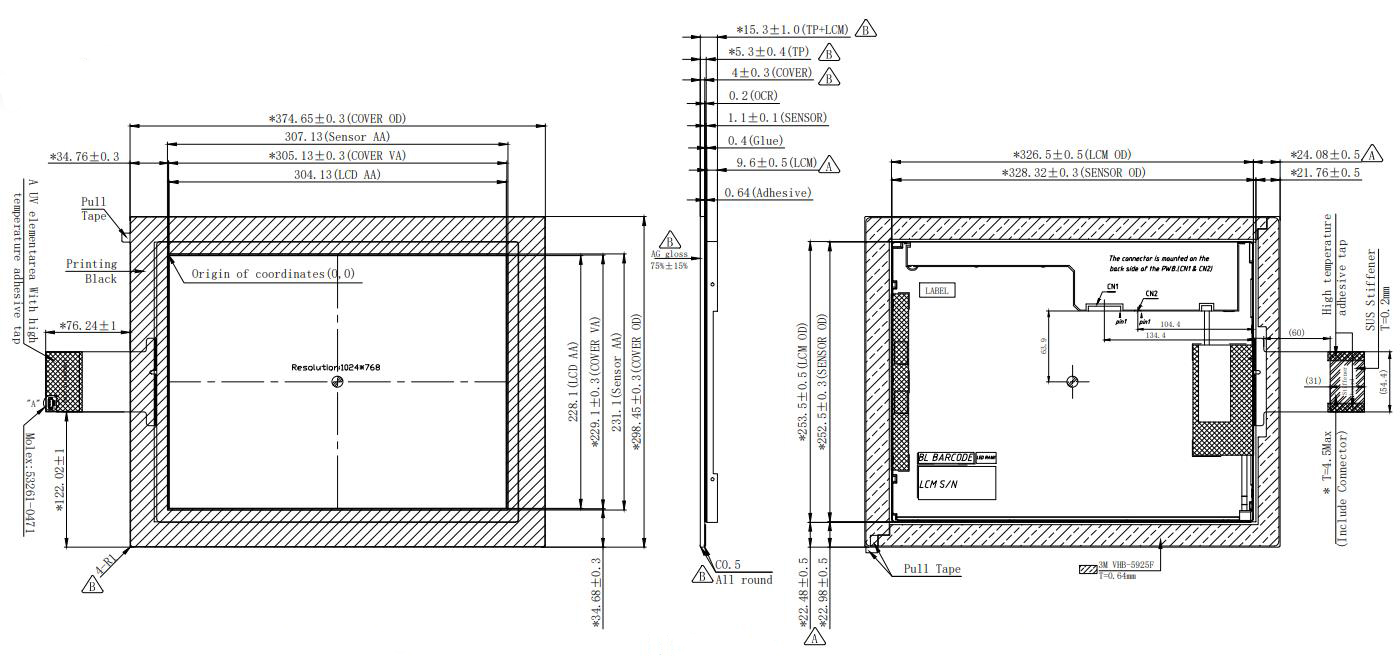

| Item | Description | Unit |
| Touch Module Size | 15 | inch |
| Outer Dimension | 374.65*298.45 | mm |
| View Area | 305.13*229.10 | mm |
| Sensor Area | 328.32*252.50 | mm |
| Cover Thickness | 4.0 | mm |
| Number of Touch | 10 | |
| Input Type | USB | |
| Control Type | Microchip |
